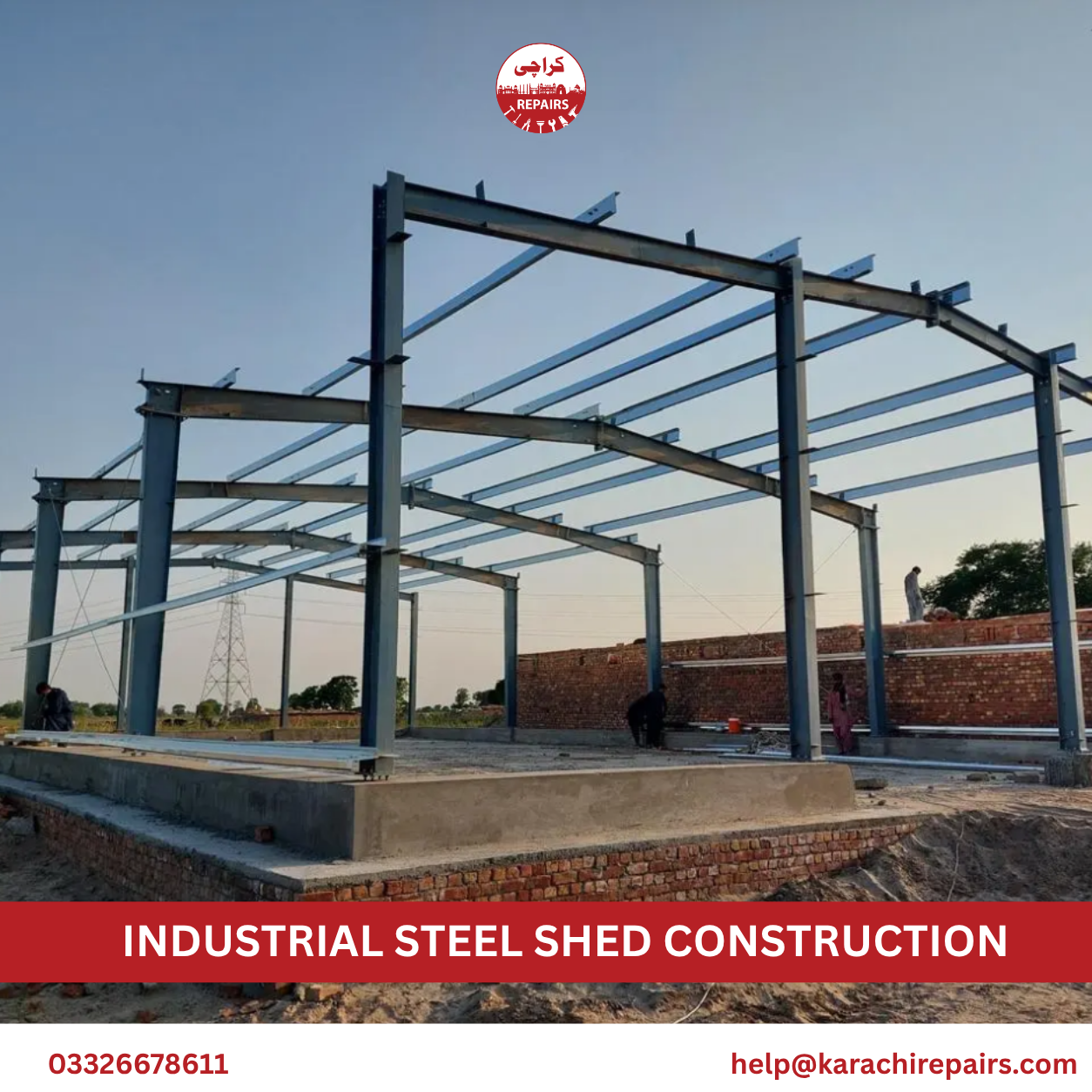

Industrial Steel Shed
Construction in Karachi
Industrial steel shed construction is the fastest way to get covered working space for a factory, warehouse or workshop. Karachi's industrial areas are busy, land is expensive and delays cost money. A well-built steel shed gives you usable space in weeks, not months.
Karachi Repairs designs, fabricates and erects industrial steel sheds across the city. This work sits under our welding and fabrication service, so one team handles the drawings, steel work, roofing, wall cladding and final fitting.
This page explains how industrial sheds are built, what materials work best in Karachi and what affects the cost. If you want to discuss your project now, call 03326678611.
Fast Turnaround Shed Construction
Need to build a factory shed, warehouse, or cold storage? Tell us the location and your project requirements. Our fabrication team usually reaches you within 30 minutes anywhere in Karachi to start planning.
REQUEST A FREE VISIT
Why Steel Is the Right Choice
For Industrial Sheds
Concrete buildings take long to build and cannot be changed easily. Steel offers clear advantages for industrial work.
Wide Clear Spans: Steel frames can span large distances with few or no columns inside. This gives you open floor space for machines, racks and vehicles. Fewer columns also mean easier movement and better layout planning.
Faster Construction: Most of the work happens in the workshop. Parts arrive on site ready to bolt or weld. This cuts on-site time sharply, which means you start production sooner.
Easy Expansion: Business grows. A steel shed can be extended by adding bays at the end or the side. You do not need to demolish anything to do this.
Strength Against Wind and Load: Steel handles tension and bending well. With correct design, it copes with strong wind, heavy roof loads and equipment weight.
Lower Long-Term Cost: Steel sheds need less maintenance than many alternatives when protected properly. The material can also be reused or resold if you ever dismantle the building.
Structural Systems: Conventional Steel
And Pre-Engineered
Two systems dominate industrial shed construction. Knowing the difference helps you choose well.
Conventional Steel Structure
In this system, we use standard rolled sections such as beams, channels, angles and pipes. The frame is designed for your specific building. It offers flexibility and works well for smaller or irregular sheds.
Pre-Engineered Steel Building (PEB) Style
PEB frames use tapered sections that match the load along the length of each member. Steel is placed where the stress is highest, so material is used efficiently. This suits large spans and repeated bays. It usually needs precise design and factory-style fabrication. We advise you based on span, height, use and budget. Small and medium sheds often work best with conventional framing. Very large, repeating buildings may benefit from a PEB-style design.
Main Parts of an Industrial Steel Shed
It helps to know what goes into the structure. Here is a simple breakdown.
- Columns: Columns carry the load from the roof down to the foundation. Their size and spacing depend on the span, height and loads.
- Rafters: Rafters connect to the columns and support the roof. They form the pitched roof shape. In portal frames, columns and rafters act together as one rigid frame.
- Purlins and Girts: Purlins run along the roof and hold the roof sheets. Girts run along the walls and hold the wall sheets. Their spacing depends on the cladding type and wind load.
- Bracing: Bracing keeps the structure stable against sideways forces such as wind. It is fitted in the roof and walls. A shed without proper bracing may look fine but can twist or sway under load.
- Base Plates and Anchor Bolts: Each column stands on a base plate fixed to a concrete footing with anchor bolts. This joint transfers the loads into the ground and holds the shed down against wind uplift.
- Roof and Wall Cladding: Cladding is the outer skin. It can be metal sheet or insulated panel. It keeps out rain, dust and heat, and gives the building its look.
Roofing and Wall Cladding Options
Roofing decides how hot, noisy and durable your shed will be. Here are the main choices.
Profiled Metal Sheets
These are strong, light and affordable. They shed water quickly. Plain metal heats up in the sun, so many factories add an insulation layer.
Insulated Sandwich Panels
Panels with an insulating core keep the inside cooler and reduce noise. They suit workshops, food units, cold storage and any place where workers spend long hours. They cost more but give better comfort and energy savings.
Translucent Sheets
Clear or translucent sheets let daylight in. They reduce lighting costs during the day. We usually place them in strips along the roof so the shed stays bright without too much heat.
Coated and Galvanized Sheets
Sheets with a protective coating resist rust longer. This matters in Karachi's humid, salty air. We recommend coated sheets for most industrial jobs.
Foundation and
Site Preparation
The best steel frame fails if the foundation is weak. Foundation work starts before any steel arrives. We check the soil, the site level and the drainage. Then we mark the column positions exactly. Concrete footings are cast with anchor bolts placed at precise spots. Even a small error here causes trouble when the columns arrive.
Karachi has reclaimed land, sandy areas and clay in different zones. Soil conditions vary a lot between sites. The footing size depends on the loads and the soil. When needed, we coordinate with your civil contractor or engineer to confirm the foundation design.
Our Industrial Steel Shed Construction Process
We follow a clear, step-by-step process on every project. This keeps the work organised and the timeline realistic.
Step 1: Site Visit and Requirement Study
We visit your site and study your needs. We ask about the use, the machines, the loads, the doors and the future expansion plans. We also inspect the ground and access for trucks and cranes.
Step 2: Design and Layout
We prepare a layout with the span, height, bay spacing and roof shape. We suggest cladding and ventilation options and explain the price difference for each. You review the plan before we start.
Step 3: Material Selection and Cutting
We choose steel sections based on the design. They are cut to size with accurate lengths. Marking each piece helps the erection go smoothly.
Step 4: Fabrication and Welding
Members are welded, drilled and fitted with connection plates. We check the welds and dimensions before the parts leave the workshop. Careful fabrication saves a lot of time on site.
Step 5: Surface Treatment and Painting
The steel is cleaned and primed. Then it gets a finish coat suitable for the site conditions. Good treatment protects the frame from rust for many years.
Step 6: Foundation Coordination
We confirm the footings and anchor bolts before erection. If something is off, we fix it now rather than force the frame into place.
Step 7: Erection and Alignment
Columns go up first, followed by rafters, purlins, girts and bracing. We check the plumb and level at every stage. The frame is tightened only when it is aligned.
Step 8: Cladding and Sealing
Roof and wall sheets are fixed with proper screws and washers. Joints, ridges and edges are sealed to stop leaks. Flashings are added around openings.
Step 9: Doors, Ventilation and Finishing
We install roller shutters, sliding doors, windows and ventilators. Then we clean the site and inspect the work.
Step 10: Handover
We walk you through the finished shed and answer your questions. If something needs adjustment, we fix it before we close the job.
Why Choose Karachi Repairs For Industrial Steel Shed Construction?
Many contractors build sheds in Karachi. Here is what you get when you work with us.
Design and Fabrication in One Team
We handle planning, fabrication, painting and erection. There is no gap between the designer and the builder, so problems are solved faster.
Straight Advice
We tell you what fits your budget and what does not. If a cheaper option will fail early, we say so. You decide with full information.
Quality Welding and Finishing
Strong welds and neat finishing show in the long run. We check our work at each stage before moving on.
Experience With Local Conditions
We know Karachi's weather, soil, industrial zones and access problems. That knowledge prevents common mistakes.
Reliable Support After Handover
If your shed needs a repair or extension, you can call us. We support the structure we build.
If you have other steel work planned, such as gates, staircases or car sheds, you can see our full welding and fabrication services.
Common Mistakes in Industrial Shed Projects
We are often called to fix sheds built by others. These mistakes appear again and again.
Undersized Steel Sections
Using thin sections to cut cost leads to sagging roofs and cracked welds. The saving looks small at first. The repair is expensive.
Poor Foundation Work
Wrongly placed anchor bolts or weak footings cause alignment problems and instability. This is one of the hardest mistakes to correct later.
Ignoring Future Expansion
Many owners build tight and then run out of room. Planning for an extra bay or a taller roof from the start costs little compared with rebuilding.
Weak Bracing
Missing or thin bracing lets the frame sway. Wind and vibration make the problem worse over time.
Poor Ventilation
A closed shed without airflow becomes unbearable in summer. Retrofitting ventilation is possible, but planning it early is cheaper.
Cheap Fasteners and Sheets
Low-quality screws and sheets rust and leak within a season. Good fasteners cost little compared with the whole building.
Crucial Elements For Industrial Sites
Ventilation, Lighting and Heat Control
Karachi's heat makes ventilation a serious issue in industrial sheds. Workers get tired, machines overheat and stored goods can suffer. We use several tools to control this:
- Ridge ventilators let hot air escape from the top of the roof.
- Turbine ventilators move air without electricity.
- Wall louvers and openings allow fresh air in.
- Insulated panels reduce the heat that enters the building.
- Translucent strips bring in daylight and cut lighting cost.
The right mix depends on your work. A welding workshop needs strong airflow. A packing unit needs steady temperature. We plan this at the design stage, since adding ventilation later is harder and costs more.
Cranes, Mezzanines and Heavy Equipment
Many industrial sheds must support more than a roof. Overhead cranes, hoists and mezzanine floors add heavy point loads. If you plan to install a crane, tell us early. The columns and beams must be designed for it. Adding a crane to a shed that was not built for it is risky and often impossible without major changes.
Mezzanines are easier to add, but they still need planning. The floor system, staircase, railing and load capacity must match your use. We can fabricate all of these together with the main shed.
Wind, Rain and Seismic Considerations in Karachi
Karachi sits in a coastal, seismically active region. Strong sea winds, heavy monsoon rain and occasional tremors all affect how a shed should be designed. Steel is a good material for this. It is flexible and handles movement better than brittle materials. Still, design and connections matter. We use proper bracing, secure base plates and strong bolted or welded joints.
For large or critical buildings, we recommend involving a structural engineer. We can work with your engineer and follow their drawings. Where you do not have one, we can help arrange the design review.
Doors, Shutters and Openings
Doors look like a small detail, but they affect daily work more than most parts of the shed. A door that is too narrow stops trucks. A door that is too low blocks forklifts. We plan openings around your vehicles and goods. Roller shutters suit loading bays. Sliding doors suit wide openings. Small access doors help staff move without opening the main shutter. We also add flashings and seals around each opening so rain and dust stay out.
Fire Safety and Emergency Exits
Every industrial building must allow people to leave quickly in an emergency. Steel does not burn, but it loses strength at high heat. That is why layout and exits matter. We plan enough doors and clear walkways in the design. Where your use needs it, we can add fire-resistant coatings or panels. We also keep space for fire extinguishers and equipment. Tell us about your storage and process risks so we can plan properly.
Corrosion Protection for Karachi's Climate
Salt and humidity attack steel year-round. Industrial areas near the coast or near chemical units face even harsher conditions. Our protection process includes these steps:
- Remove rust, oil and mill scale from the steel.
- Apply an anti-corrosive or epoxy primer.
- Give extra coats at welds, bolts and edges.
- Finish with paint or a protective coating that suits the environment.
- Use galvanized or coated sheets and fasteners where suitable.
Water traps are another cause of rust. We avoid open pipe ends and pockets where water can sit. Good drainage on the roof and around the base also helps a lot.
What to Prepare Before You Call Us
A little preparation makes the first visit much more useful. If you have these details, share them with us:
- The plot size and the area you want to cover
- The type of work or goods inside the shed
- The heaviest machine or load you plan to place
- Any crane, mezzanine or racking plans
- Your target start date and finish date
- Your approximate budget range
Do not worry if you do not have all of this. Our team can help you work it out on site. Still, the more you know, the faster we can prepare a plan.
Safety During Construction
Building a large steel structure involves lifting, welding and work at height. Safety on site is not optional. Our workers use protective gear and follow safe lifting practices. We mark the work zone and keep it separate from your daily operations where possible. If your factory keeps running during construction, we plan the work in sections so production is disturbed as little as possible.
We also ask you to keep the area clear of flammable material during welding. A short talk with your site manager before we start avoids most problems.
Maintenance of Industrial Steel Sheds
A steel shed needs simple, regular care. This keeps it safe and extends its life.
- Inspect the roof and walls after every monsoon season.
- Check screws, bolts and joints and tighten any loose ones.
- Clean gutters and drains to prevent water build-up.
- Touch up chipped paint and rust spots quickly.
- Check the base plates and lower columns for corrosion.
- Look for signs of leaks, sagging or movement in the frame.
Small problems are cheap to fix. Ignored problems grow into structural repairs. If you see anything unusual, call us early.
Repair, Extension & Modification
Not every project starts from scratch. Many Karachi factories already have sheds that need repair or expansion. We repair rusted columns, damaged roof sheets, cracked welds and leaking roofs. We extend existing sheds by adding bays or raising the height. We also upgrade old roofs with insulated panels and add ventilation.
Before any change, we inspect the existing structure. We check whether it can carry the extra load. If it cannot, we tell you and suggest a safe solution.
Our Teams Reach You Within 30 Minutes Across Karachi
Time matters on industrial sites. A delay in measurement, a broken sheet or a damaged frame can stop your work. Karachi Repairs keeps teams in different areas of the city. When you call, we send the nearest team, and they can reach you within 30 minutes for a site visit or urgent work.
This helps you get quick inspections, faster quotes and rapid response for repairs. We cover industrial and residential areas such as:
- SITE Industrial Area and Orangi
- Korangi Industrial Area and Landhi
- North Karachi Industrial Area
- Federal B Area and Nazimabad
- Gulshan-e-Iqbal and Gulistan-e-Jauhar
- Malir, Airport area and Quaidabad
- Saddar and Karachi Cantt
- DHA, Clifton and Defence
- Scheme 33 and Bahria Town Karachi
- Port Qasim and Bin Qasim area
Your site is not on this list? Call 03326678611 and ask. We will tell you honestly how soon a team can reach you.
What Affects the Cost of Industrial Steel Shed Construction?
We do not give a fixed price without understanding your project. Industrial sheds vary too much. These are the main cost factors. Size and Height: A larger floor area needs more steel and cladding. Higher walls and roofs need heavier columns and bracing. Both raise the cost. Span and Column Layout: Wide, column-free spans need bigger sections. More columns lower the steel weight but reduce open space. We balance this against your layout needs. Roofing and Wall Cladding: Insulated panels cost more than plain sheet. Coated and thicker sheets also add to the price. Cladding is a big part of the total, so the choice matters. Loads and Special Features: Cranes, mezzanines, heavy racking and hanging equipment need stronger frames. These add steel and fabrication time. Foundation Conditions: Weak soil needs bigger or deeper footings. A site with poor access can also raise labour and transport costs. Finish and Accessories: Doors, windows, ventilators, gutters and extra coatings add to the price. You can plan these in stages if your budget is tight. Timeline: A short deadline may need more workers and longer hours. Tell us your target date early so we can plan for it. For an accurate estimate, call 03326678611 and arrange a site visit.
Who We Build Industrial Steel Sheds For
Factory owners need durable sheds for production lines. Warehouse operators need open space and secure storage. Builders and developers need repeatable quality across several units. Workshop and garage owners want practical, affordable space. Logistics and trading companies want covered loading and storage areas.
Whatever your business, our method stays the same: study the need, design carefully, build strongly and finish properly.
Book Your Industrial Steel Shed Construction Today
An industrial shed is a long-term investment. It should be strong, safe and suited to your work. Karachi Repairs gives you a clear plan, honest advice and careful workmanship from the first measurement to the final bolt.
Call 03326678611 or visit karachirepairs.com to book your site visit. Our nearest team can reach you within 30 minutes.
Frequently Asked Questions About Industrial Steel Shed Construction
How long does industrial steel shed construction take?
Small and medium sheds can be finished in a few weeks after the foundation is ready. Large projects take longer. We share a timeline after the site visit and design.
How much does an industrial steel shed cost in Karachi?
The cost depends on size, height, span, cladding, loads and finish. We provide a clear estimate after studying your requirement. Call 03326678611 to book a visit.
Is a steel shed better than a concrete building for industry?
Steel is faster to build, easier to expand and better for wide open spans. Concrete suits some needs, such as heavy fire ratings or multi-storey use. For most factories and warehouses, steel is the practical choice.
Can you build a shed with a crane or mezzanine?
Yes. We design the frame for these loads from the start. Please tell us early, because crane loads change the column and beam design.
How do you handle heat inside the shed?
We use insulated panels, ridge and turbine ventilators, wall openings and translucent strips. The best mix depends on your work and budget.
Will the steel rust in Karachi's weather?
Untreated steel will rust. We clean, prime and coat the frame and use coated sheets and suitable fasteners. Good drainage and sealed joints add protection.
Can you extend or repair my existing industrial shed?
Yes. We inspect the current structure, confirm its capacity and then repair, extend or upgrade it as needed.
Do you serve industrial areas across Karachi?
Yes. Karachi Repairs has teams placed in many areas of the city, and in most areas a team can reach you within 30 minutes. Call us with your location to confirm.
